Making GridView Rows or Individual Cells Clickable and Selectable.


Introduction:


In some scenarios we need to make GridView rows clickable and also in some cases we may need to make each cell of the GridView clickable like while developing reports.


We need to attach some event to each GridView row or each GridView cell to get the rowindex and cellindex (ColumnIndex) on which the user has clicked or double clicked.


This article shows you how to add attributes like click or double click GridView row or GridView individual cell and get the details of selected Row or Cell.


Description:


Making GridView with Selectable Rows:




  • First create a new Website application, attach any database or add connection string to the existing database in the web.config file.

  • Add gridview along with DataSource control (SqlDataSource control)on to the page. Configure DataSource control to get records from some table.

  • Assign DataSourceId of the GridView with the ID of the SqlDataSource control.

  • Add ButtonField to the GridView columns.


  • <asp:ButtonField CommandName="Select" Visible="false" />

  • As we know the GridView RowDatabound event is fired while binding each row to the GridView. Now we need to handle GridView OnRowDataBound event to modify each row as it is bound, where we can add attributes to each GridView row to handle Onclick or OnDouble click event by adding client script which is used by the SingleClick button for postback and assign it to the entire row.


  • protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
    {
    if (e.Row.RowType == DataControlRowType.DataRow)
    {
    if (e.Row.RowType == DataControlRowType.DataRow)
    {
    // Get reference to button field in the gridview.
    LinkButton _singleClickButton = (LinkButton)e.Row.Cells[0].Controls[0];
    string _jsSingle = ClientScript.GetPostBackClientHyperlink(_singleClickButton, "Select$" + e.Row.RowIndex);
    e.Row.Style["cursor"] = "hand";
    e.Row.Attributes["onclick"] = _jsSingle;
    }
    }
    }

  • We can similarly add client script for double click as well.


  • protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
    {
    if (e.Row.RowType == DataControlRowType.DataRow)
    {
    if (e.Row.RowType == DataControlRowType.DataRow)
    {
    // Get reference to button field in the gridview.
    LinkButton _singleClickButton = (LinkButton)e.Row.Cells[0].Controls[0];
    string _jsSingle = ClientScript.GetPostBackClientHyperlink(_singleClickButton, "Select$" + e.Row.RowIndex);
    e.Row.Style["cursor"] = "hand";
    e.Row.Attributes["ondblclick"] = _jsSingle;
    }
    }
    }

  • Now each row of the GridView is clickable and we can get the details of the user selected row in GridView OnSelectedIndexChanged event.

  • So we need to handle GridView’s OnSelectedIndexChanged event to get the selected row as below.


  • protected void GridView1_SelectedIndexChanged(object sender, EventArgs e)
    {
    GridViewRow selectedRow = GridView1.SelectedRow;
    lblSelectedRow.Text = GridView1.SelectedIndex.ToString();
    lblName.Text = selectedRow.Cells[2].Text;
    lblEmpId.Text = selectedRow.Cells[3].Text;
    }

  • To overcome Event Validation errors we need to handle Pages Render method. Otherwise we will get the Invalid postback or callback argument (Event validation is enabled using <pages enableEventValidation="true"/> in configuration or <%@Page EnableEventValidation="true" %> in a page.  For security purposes, this feature verifies that arguments to postback or callback events originate from the server control that originally rendered them.  If the data is valid and expected, use the ClientScriptManager.RegisterForEventValidation method in order to register the postback or callback data for validation.) error.

  • As we know that for security purposes, this feature verifies that arguments to postback or callback events originate from the server control that originally rendered them.  If the data is valid and expected, use the ClientScriptManager. RegisterForEventValidation method in order to register the postback or callback data for validation.

  • So add the following code on to the page to register each gridview row for event validation.


  • protected override void Render(HtmlTextWriter writer)
    {
    foreach (GridViewRow row in GridView1.Rows)
    {
    if (row.RowType == DataControlRowType.DataRow)
    {
    ClientScript.RegisterForEventValidation(((LinkButton)row.Cells[0].Controls[0]).UniqueID, "Select$" + row.RowIndex);
    }
    }
    base.Render(writer);
    }

  • Now everything is ready just run the page and u can find that each gridview row is selectable as show in below figure.






Making each GridView individual cells Clickable and Selectable:




  • First create a new Website application, attach any database or add connection string to the existing database in the web.config file.

  • Add gridview along with DataSource control (SqlDataSource control) on to the page. Configure DataSource control to get records from some table.

  • Assign DataSourceId of the GridView with the ID of the SqlDataSource control.

  • Add ButtonField with some Command Name say “ColumnClick” to the GridView columns.


  • <asp:ButtonField CommandName="ColumnClick" Visible="false" />

  • As we know the GridView RowDatabound event is fired while binding each row to the GridView. Now we need to handle GridView OnRowDataBound event to modify each cell in each GridView row as it is bound, where we can add attributes to each GridView cell to handle Onclick or OnDouble click event by adding client script which is used by the SingleClick button for postback and assign it to each cell.


  • protected void GridView1_RowDataBound(object sender, GridViewRowEventArgs e)
    {
    if (e.Row.RowType == DataControlRowType.DataRow)
    {
    if (e.Row.RowType == DataControlRowType.DataRow)
    {
    LinkButton _singleClickButton = (LinkButton)e.Row.Cells[0].Controls[0];
    string _jsSingle = ClientScript.GetPostBackClientHyperlink(_singleClickButton, "");
    // Add events to each editable cell
    for (int columnIndex = 0; columnIndex < e.Row.Cells.Count; columnIndex++)
    {
    // Add the column index as the event argument parameter
    string js = _jsSingle.Insert(_jsSingle.Length - 2, columnIndex.ToString());
    // Add this javascript to the onclick Attribute of the cell
    e.Row.Cells[columnIndex].Attributes["onclick"] = js;
    // Add a cursor style to the cells
    e.Row.Cells[columnIndex].Attributes["style"] += "cursor:pointer;cursor:hand;";
    }
    }
    }
    }

  • We can similarly add client script for double click as well.

  • Now each row of the GridView is clickable and we can get the details of the user selected cell in GridView OnRowCommand event.

  • So we need to handle GridView’s OnRowCommand event to get the selected cell details as below. Within the RowCommand event, the command argument and the event argument are retrieved. This gives us the row and column index of the selected cell.


  • protected void GridView1_RowCommand(object sender, GridViewCommandEventArgs e)
    {
    if (e.CommandName.ToString() == "ColumnClick")
    {
    foreach (GridViewRow r in GridView1.Rows)
    {
    if (r.RowType == DataControlRowType.DataRow)
    {
    for (int columnIndex = 0; columnIndex < r.Cells.Count; columnIndex++)
    {
    r.Cells[columnIndex].Attributes["style"] += "background-color:White;";
    }
    }
    }
    int selectedRowIndex = Convert.ToInt32(e.CommandArgument.ToString());
    int selectedColumnIndex = Convert.ToInt32(Request.Form["__EVENTARGUMENT"].ToString());
    GridView1.Rows[selectedRowIndex].Cells[selectedColumnIndex].Attributes["style"] += "background-color:Red;";
    lblSelectedColumn.Text = selectedColumnIndex.ToString();
    lblSelectedRow.Text = selectedRowIndex.ToString();
    lblSelectedColumnTitle.Text = GridView1.Columns[selectedColumnIndex].HeaderText;
    lblSelectedColumnValue.Text = GridView1.Rows[selectedRowIndex].Cells[selectedColumnIndex].Text;
    }
    }

  • To overcome Event Validation errors we need to handle Pages Render method. Otherwise we will get the Invalid postback or callback argument (Event validation is enabled using <pages enableEventValidation="true"/> in configuration or <%@Page EnableEventValidation="true" %> in a page.  For security purposes, this feature verifies that arguments to postback or callback events originate from the server control that originally rendered them.  If the data is valid and expected, use the ClientScriptManager.RegisterForEventValidation method in order to register the postback or callback data for validation.) error.

  • As we know that for security purposes, this feature verifies that arguments to postback or callback events originate from the server control that originally rendered them.  If the data is valid and expected, use the ClientScriptManager. RegisterForEventValidation method in order to register the postback or callback data for validation.

  • So add the following code on to the page to register each gridview cell for event validation.


  • protected override void Render(HtmlTextWriter writer)
    {
    foreach (GridViewRow r in GridView1.Rows)
    {
    if (r.RowType == DataControlRowType.DataRow)
    {
    for (int columnIndex = 0; columnIndex < r.Cells.Count; columnIndex++)
    {
    Page.ClientScript.RegisterForEventValidation(r.UniqueID + "$ctl00", columnIndex.ToString());
    }
    }
    }
    base.Render(writer);
    }

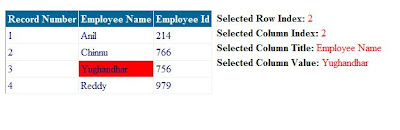

  • Now everything is ready just run the page and u can find that each gridview cell is selectable as show in below figure.





Download the Sample Code here.
